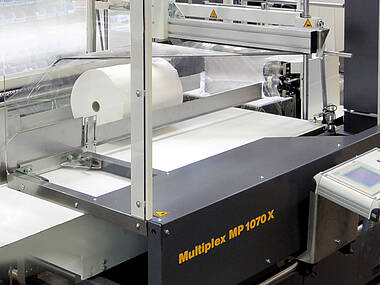

beck-Multiplex MP 1070 X

Intermittent film packaging machine with 3-sided sealing for large-format products


This fully-automatic film packaging machine uses a form shoulder for three-sided product sealing. The beck form shoulder principle guarantees optimal packaging results for large-volume products, for a wide range of formats and materials.



Details
mechanical unwind for the easy opening of the film bag

Tear open perforation system: mechanical unwind for the easy opening of the film bag

Form shoulder for large volume product

Form shoulder for large widths

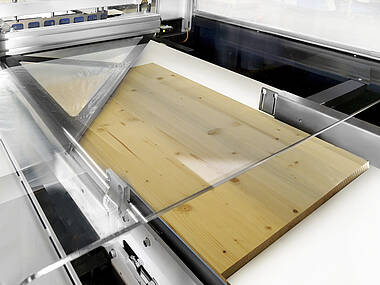

Packaging of wooden boards on beck-Multiplex MP 1070 X and beck-Thermoschrumpfer HV 801 HPLS

All videos ›

All of our packaging machines can process recyclable monofilms, films made of recycled materials, bio-films and many other environmentally-friendly film types.

In addition, we offer the option of integrating various scanning, marking and labelling systems, infeed and outfeed conveyors, and collection and grouping stations, and are happy to work with you to develop these options as needed. We tailor your packaging system precisely to your needs and product requirements.

Overview of advantages:

  • Sustainable, high-quality and durable design
  • Flexible working width for large-volume products
  • User-friendly, thanks to good accessibility and a product memory
  • Continuously heated, low-maintenance and regulated sealing systems
  • Energy-saving drive and control systems
  • Fine, stable sealed seams for optimal packaging
  • Sealing systems for detachable seam and wide seam applications

Can be equipped with a variety of options:

  • Integration of scanning, marking and labelling systems
  • Integration of infeed and outfeed conveyors
  • Integration of collection and grouping stations
  • Integration of reject systems
  • Integration of different packaging solutions

For shrink-fit packaging, the Multiplex MP 1070 X can be expanded with our beck shrink tunnels to create a shrink-fit packaging system.

Product width:
100 - 700 mm*
Max. product height:
300 mm*
Max. output:
40 cycles/min*

*depending on products, feeding, labelling and film

beck form, fill and seal machines: versatility for formats and materials.

The wide product range of the beck form, fill and seal machines sets standards. Thanks to the form shoulder principle, exemplary flexibility is achieved for a variety of formats and materials. A roll of centre-folded film is led over a form shoulder and then sealed on three sides or overlapped. Whether for manual or automatic feeding, the beck form, fill and seal machines are available in different working widths and for different performance requirements.

Other industries

Film packaging for a variety of printing & paper products

Read more

Packaging for a variety of textile products

Read more

Film packaging for e-commerce and mail-order business

Read more

Film packaging for a variety of food, drink & tobacco products

Read more

Packaging for a variety of household & leisure products

Read more

Film packaging for a variety of plastic & rubber products

Read more

Packaging for a variety of technical products

Read more

Packaging for a variety of contract packaging products

Read more

Packaging for a variety of healthcare products

Read more

Packaging for a variety of wood products

Read more

Paper packaging for e-commerce and mail-order business

Read more

Form, fill and seal machines from beck packautomaten: Versatility and flexibility

beck packautomaten offers you a wide range of form, fill and seal machines using which you can package your products with high quality and securely. These packaging machines are distinguished by impressive versatility and flexibility. Format and material changes are easy with form, fill and seal machines, and many different packaging solutions for many different products can be realised.
For the form shoulder principle, the packaging material is first fed over the forming shoulder and formed into a packaging that is then filled with the product and sealed on three sides or overlapping. Thereby the product can be fed both manually as well as automatically – completely as you require.

Your advantages of beck form, fill and seal machines at a glance

Form, fill and seal machine from beck packautomaten are distinguished by highest quality and efficiency.

Here are some further advantages at a glance:

  • › Maximum flexibility of formats and materials
  • › Many optional functions for individual solutions
  • › Models with product data memory for more efficient processes and easier format changes
  • › Long service life and low wear of the sealing systems
  • › Space saving design and easy operation


You obtain form, fill and seal machines from beck packautomaten that meet your requirements and positively influence your packaging processes. We are also happy to develop integrated solutions for you for holistic, automated production processes.

Individual packaging solutions with form, fill and seal machines

beck form, fill and seal machines are available in various working widths and for different performance requirements. We provide the complete range, from a special design for limited space conditions to starter models to form, fill and seal machines for the packaging of large-volume products, from which we can develop an appropriate individual solution for you.

In doing so, many different packaging options can be implemented. Everything is possible, from the simple sealing on three sides to the sealing of a Euro slot to carrying handle packaging. beck packautomaten also provides the appropriate solution for labelling, printing or marking of your packaging. Easy to use tear-open strips or perforations and practical set packaging can also be implemented with beck form, fill and seal machines.

We use the decades of experience that we were able to acquire from the collaboration with companies from many different industries to design even better individual packaging solutions for you. See the versatile possibilities for yourself that our form, fill and seal machines provide for you. We look forward to your enquiry.
